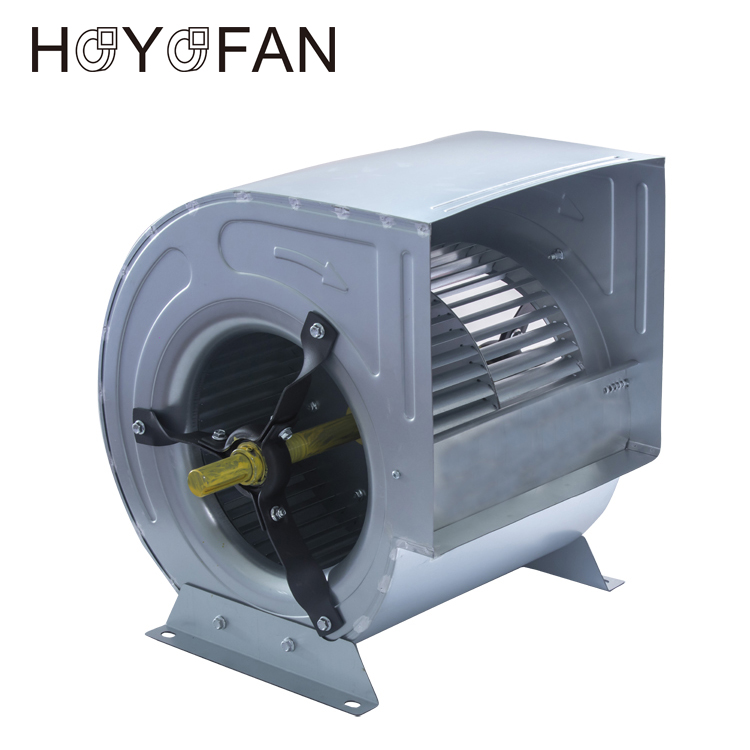

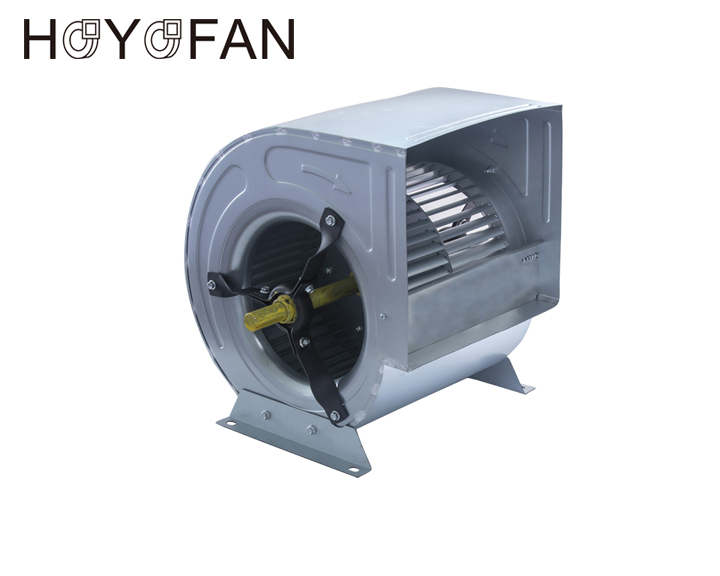

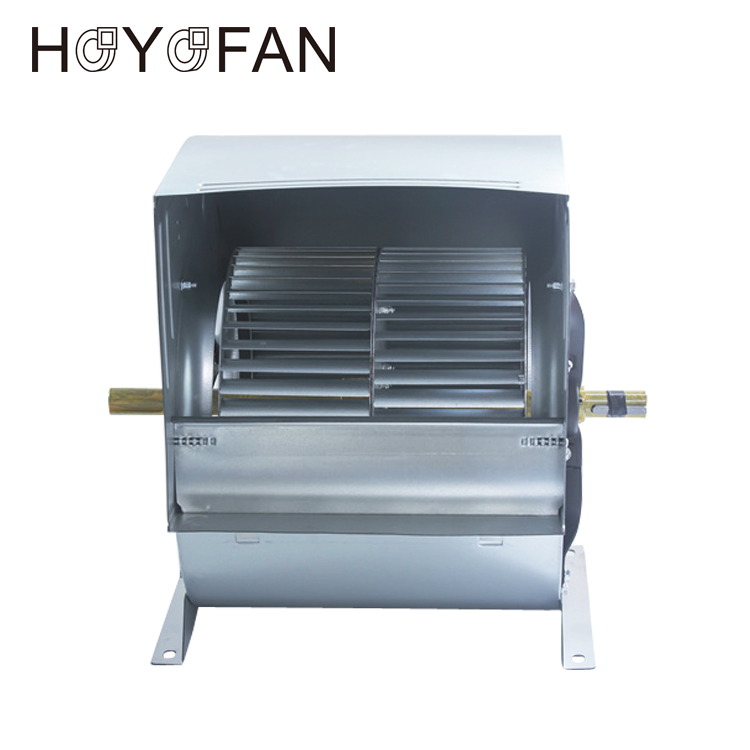

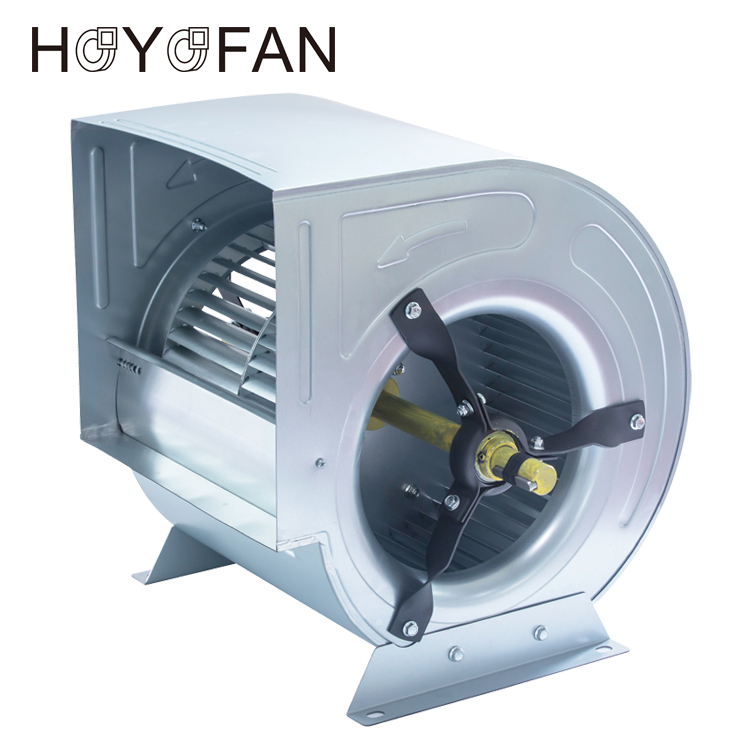

Forward Curved Double Inlet Centrifugal Fans of Blet & Pulley Drive

SYT L series
Power by：pulley and belt

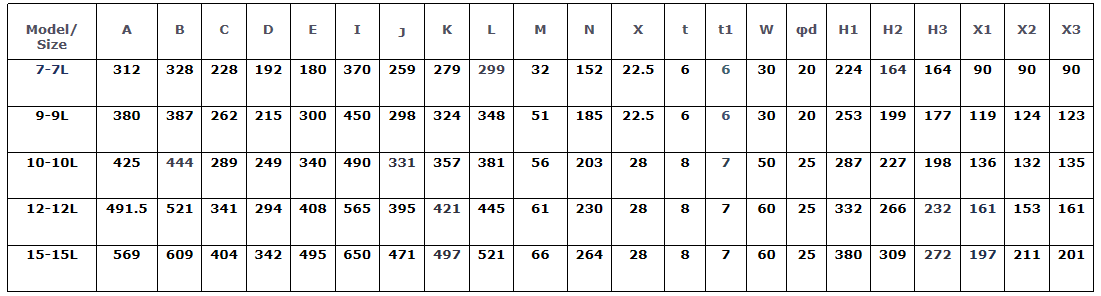

Available size：10-10L; 12-12L; 15-15L; 18-18L
12-9L; 10-8L; 9-9L; 9-7L;7-7L
Housing：Galvanized steel sheet
Bearing: High carbon steel ball bearings,HRB
Shaft: Carbon Steel bar (AISI-1045) with unti-rust paint
Impeller: Forward curved galvanized sheet
Shaft diameter: 20-25mm
Fixed bracket: 6pcs Iron bracket anti-oxidation treatment

SYT L series Power by：pulley and belt

Available size：10-10L; 12-12L; 15-15L; 18-18L 12-9L; 10-8L; 9-9L; 9-7L;7-7L
